In the hyper-competitive industrial landscape of 2026, many Indian manufacturers in hubs like Delhi NCR, Pune, Ahmedabad, and Bangalore often realize too late that a drawing which “looks good” on paper can fail miserably in physical reality. The difference between a high-performance facility and a chaotic, high-cost operation lies in the precision of your manufacturing factory floor plan layout with dimensions. Without accurate measurements for machinery footprints, dynamic operator zones, and material handling pathways, your project is prone to budget overruns and operational bottlenecks.
A poorly conceived layout is often a silent killer of efficiency. If your floor plan doesn’t account for the realistic “dynamic” space required for maintenance or the exact width needed for forklift movement, you risk expensive retrofitting once production begins. This guide is designed to help you bridge the gap between a conceptual sketch and a technical manufacturing plant layout with sizes that actually works. At Construction Estimator India, we believe that a dimensioned layout is the only foundation for an accurate Bill of Quantities (BOQ) and a project that stays on budget.
Why Dimensions Matter in Manufacturing Factory Floor Plan Layout
In 2026, a scientific manufacturing factory floor plan layout with dimensions is no longer optional; it is the engine of your profitability. Precision in sizing your zones directly impacts your bottom line in several ways:
- Reduction in Material Handling Costs: Up to 30-50% of manufacturing labor time is often wasted on moving materials. Accurate dimensions ensure the shortest, most logical path between receiving and dispatch.
- Enhanced Worker Safety: Proper zoning separates heavy forklift traffic from pedestrian pathways. Following the National Building Code (NBC) 2026 standards for exit widths and aisle clearances is critical for compliance and safety.
- Optimized Space Utilization: Utilizing cubic space—not just floor area—allows for mezzanine levels and vertical storage, maximizing your ROI on expensive industrial land in cities like Mumbai or Bangalore.
- Machinery Reliability: Accurate factory floor plan dimensions must include the “working envelope”—the space needed for an operator to move and for maintenance access to prevent line stoppages.
Key Principles of Efficient Factory Floor Plan Design with Dimensions
Before you begin sketching your industrial factory layout drawing with measurements, you must adhere to these foundational principles:
- Sequence of Operations: The layout must follow the logical sequence of your production process. Materials should follow a unidirectional flow—often U-shaped, L-shaped, or Straight-line—to prevent backflow and congestion.
- Minimum Travel: Every meter a worker or material travels adds cost but zero value. Aim for the shortest possible distance between processes.
- Flexibility for Expansion: Always design your layout so you can add a second production line without tearing down existing structures. Modular utility lines for power and compressed air are essential.
- Cubic Space Utilization: Leverage high clear heights (typically 30–40 ft in modern PEBs) for vertical storage and overhead cranes.
- Integration of 3M’s: Your plan must integrate Men, Machines, and Materials into a single cohesive system.
Standard Dimensions & Clearances You Must Follow
To create a practical manufacturing factory floor plan layout with dimensions, you must use realistic industry standards. Below are the typical clearances required for modern Indian factories in 2026:
- Primary Forklift Aisles: These should be at least 3 meters (approx. 10 feet) wide to allow for safe two-way movement of standard forklifts.
- Pedestrian Pathways: Clearly marked paths for workers should be 1 to 1.5 meters wide and must be separated from machinery and vehicle zones.
- Machinery Clearances: Beyond the machine’s static footprint, you must allow for a “working envelope” of at least 1 meter on all sides for operator movement and maintenance access.
- Emergency Exits: Following NBC 2016 fire safety standards, primary exit paths must be unobstructed and typically at least 2 meters wide depending on the occupancy load.
- Column Spacing (Grid): For Pre-Engineered Buildings (PEB), a standard column grid of 6 meters to 9 meters is common, though clear spans of 100m+ are possible to maximize flexibility.
- Loading Dock Heights: Standard loading docks for heavy trailers should be approximately 1.2 to 1.3 meters high, equipped with dock levelers.

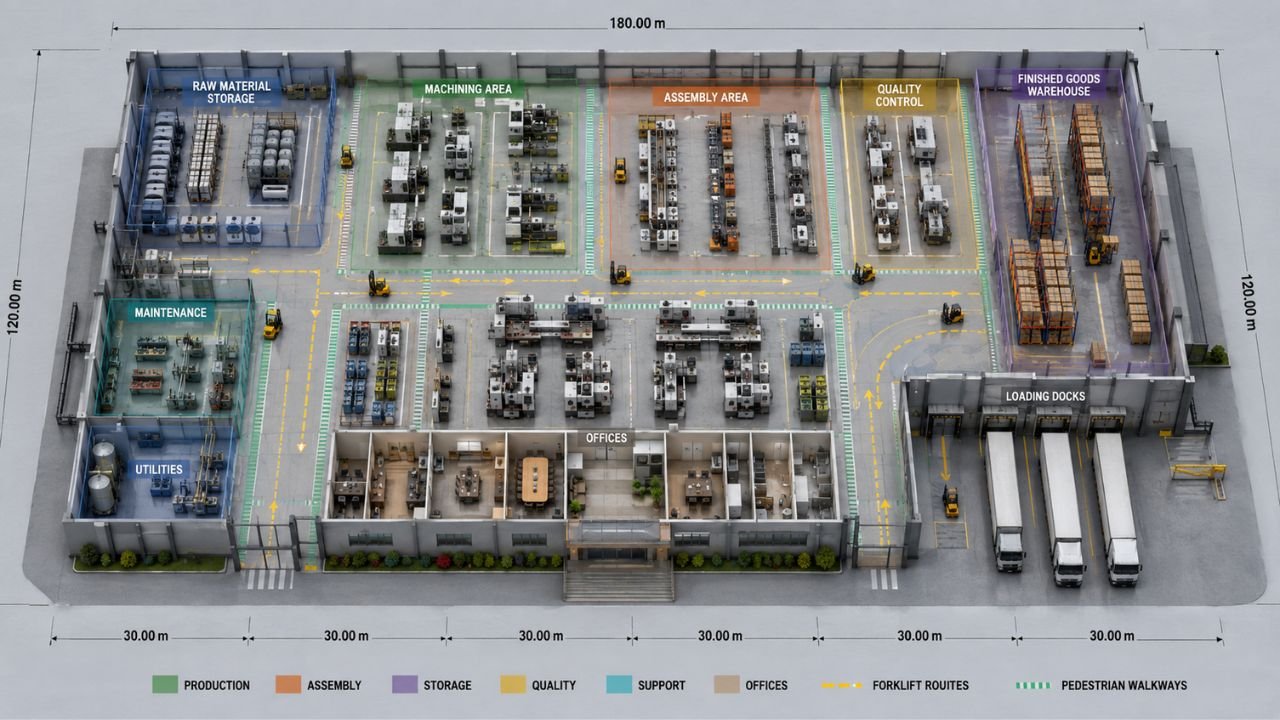

Essential Zones and Their Typical Size Requirements
A professional manufacturing plant layout with sizes must define functional zones to prevent operational chaos.
| Zone Type | Typical Size / Percentage of Total Area | Key Dimensional Requirements |
|---|---|---|
| Receiving & Unloading | 10% – 15% | Min. 15-20m turning radius for heavy trailers. |
| Raw Material Storage | 15% – 20% | High-bay racking; min. 3.5m wide pallet aisles. |
| The Production Core | 40% – 50% | Specialized flooring (VDF) for machinery loads. |
| QC Lab & Buffers | 5% – 8% | Centrally located; vibration-controlled zones. |
| Finished Goods / Dispatch | 15% – 20% | Proximity to loading docks; separate from entry. |
| Utilities & Maintenance | 5% – 10% | Min. 2m clearance around transformers/panels. |
Step-by-Step Process – How to Create a Factory Floor Plan Layout with Dimensions
Creating a manufacturing factory floor plan layout with dimensions involves a technical, data-driven approach:
- Analyze the Process Flow: Map every step from raw material entry to finished product exit. Identify any “loops” which represent wasted money.
- Determine Equipment Footprints: List every machine with its “static” size and the “dynamic” space required for operators and maintenance.
- Block Layout Planning: Allocate the large functional zones. Ensure “Receiving” is near “Raw Materials” and “Packaging” is near “Finished Goods”.
- Draft the Detailed 3D Layout: Use 3D modeling to visualize machinery placement. This is critical to avoid “clashes” between machinery and structural columns or overhead EOT cranes.
- Plan Utilities & Safety: Map out electrical loads, compressed air lines, and fire sprinkler systems early to avoid costly retrofitting.
- Validate with a Professional BOQ: A layout is just a drawing until you know what it costs to build. Convert your dimensioned plan into a detailed Bill of Quantities.

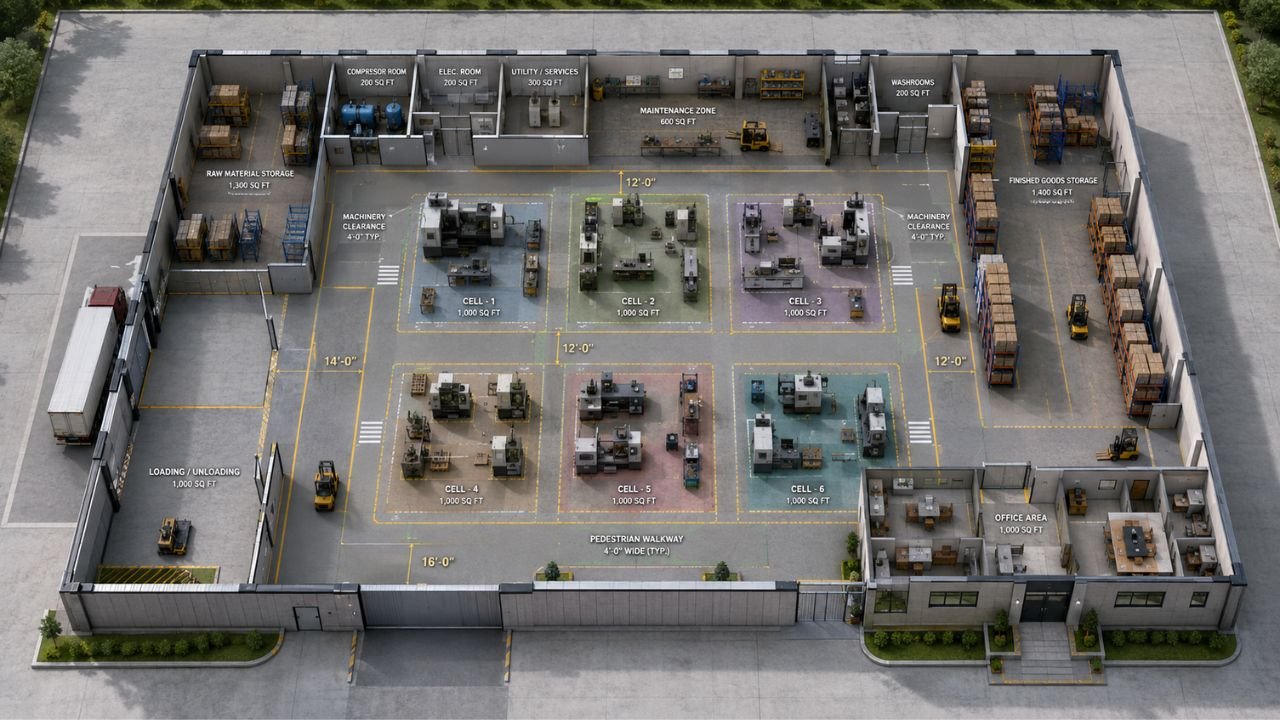

Sample Manufacturing Factory Floor Plan Layout Ideas with Dimensions
Depending on your production volume and product variety, you might choose one of these common layout types:
- Process Layout: Ideal for high variety, low volume (e.g., job shops). Similar machines are grouped together. Dimensions must allow for varied movement paths for different products.
- Product (Line) Layout: The gold standard for mass production (e.g., Automotive, FMCG). Machines are arranged in a fixed sequence. Sizes are optimized for high-speed throughput.
- Cellular Layout: A “Lean” approach where workers and machines are organized into “cells.” This drastically reduces material handling time and improves quality.
- Small Workshop (5,000 – 10,000 sq ft): Often uses a U-shaped flow to keep receiving and shipping at the same end of the building, simplifying logistics.
Common Dimensional Mistakes to Avoid
Avoid these frequent pitfalls that increase construction costs and operational headaches:
- Ignoring Soil Bearing Capacity (SBC): Placing heavy machinery on a floor not designed for the load leads to cracks and downtime.
- Inadequate Electrical Planning: Factoring in HT/LT panels and dedicated transformers too late can lead to massive redesign costs.
- Poor Lighting and Ventilation: Neglecting polycarbonate skylights or turbo-ventilators increases electricity bills and worker fatigue.
- Neglecting Fire Safety: Retrofitting fire sprinklers to meet NBC standards later is 3x more expensive than planning them in the initial layout.
- Choosing the Cheapest Contractor: Low quotes often use Grade 250 steel instead of the safer, high-strength Grade 345, compromising structural integrity.
Factory Floor Plan Layout & Construction Cost Factors in India 2026
In 2026, your layout decisions directly impact the factory construction cost per sq ft in India.
- PEB vs. RCC: Pre-Engineered Buildings (PEB) are typically 20-30% more cost-effective for large spans and offer faster ROI.
- Standard PEB Factory Cost: Ranges from ₹1,200 to ₹1,850 per sq ft depending on height and span.
- Flooring (VDF vs. FM2): Standard Vacuum Dewatered Flooring (VDF) is essential for durability, while high-precision warehouses may require FM2 “Superflat” floors.
- Clear Height Impact: Increasing clear height (e.g., above 30 ft) increases wind load, requiring heavier steel sections and deeper foundations, which increases the cost per sq ft.
- GST & Labor: A standard 18% GST on construction services and an accurate Bill of Quantities (BOQ) are necessary to avoid “budget shocks”.
How Construction Estimator India Helps You with Dimensioned Layouts & Cost Estimates
At Construction Estimator India, we bridge the gap between a “dream layout” and a “realistic budget”. A layout without a cost estimate is just a wish. We provide the BOQ Advantage to help you secure bank loans and manage contractors effectively.
Our expertise includes:
- Practical Layout Recommendations: We review your production process and suggest improvements to reduce material handling.
- Detailed Quantity Takeoff: We measure every kilogram of steel and cubic meter of concrete from your dimensioned plans.
- Accurate 2026 Rate Analysis: Applying current market rates for materials like JSW/TATA steel and heavy-duty cement.
- Bank-Ready BOQs: We provide the technical cost estimations required by major Indian banks for industrial loans.
Get Practical Dimensioned Layout Advice + Accurate Cost Estimate
Don’t rely on guesswork or “lump sum” quotes that lead to 40% budget overruns. Take an informed decision for your manufacturing unit today.
Our Simple 3-Step Process:
- Share Details: Tell us your factory type, production process, plot size, and location.
- Get Recommendations: Receive practical layout advice focused on flow and efficiency.
- Receive Your Quote: Get an accurate construction cost estimate and BOQ within 24–48 hours.
Contact Construction Estimator India Today:
WhatsApp or Call: +91 8630676890
FAQ: Frequently Asked Questions
Q1. What is the average cost of factory construction per sq ft in India 2026?
The average cost for a standard PEB factory ranges from ₹1,200 to ₹1,800 per sq ft, depending on clear height, span, and geographical location.
Q2. What is the standard aisle width for a factory with forklifts?
In modern Indian factories, primary aisles should be at least 3 meters (10 feet) wide for safe movement, while pedestrian paths should be 1–1.5 meters.
Q3. Is PEB better than RCC for a manufacturing floor plan?
Yes, PEB is faster to build, offers clear spans up to 100m+ without internal columns, and is typically 20-25% more cost-effective than conventional RCC for industrial sheds.
Q4. What is VDF flooring, and why is it needed?
Vacuum Dewatered Flooring (VDF) increases compressive strength and abrasion resistance, making the floor suitable for heavy machinery and heavy forklift traffic.
Q5. How much space should I leave for machinery maintenance?
You should typically leave at least 1 to 1.5 meters of “dynamic” space around machines for operators and maintenance access.
Q6. Does a good layout really reduce production costs?
Yes, by minimizing material handling time and inventory-in-progress, an efficient layout can reduce total operational costs by 15-25%.
Q7. How does clear height affect construction costs?
Higher clear heights increase the wind load on columns, requiring thicker steel sections and deeper foundations, which increases the overall cost per sq ft.
Q8. Why do I need a professional BOQ for a bank loan?
Banks require a technical cost estimation and detailed Bill of Quantities (BOQ) before releasing industrial loans to ensure the project is financially viable.
Conclusion
Calculating your manufacturing factory floor plan layout with dimensions and its associated costs is the foundation of your business’s physical success. In 2026, the shift toward PEB, solar-ready roofing, and automated flooring has made professional estimation more vital than ever. Don’t let your project fail due to “Estimated vs. Actual” cost variance.
Whether you are building a textile unit in Surat or a high-tech electronics plant in Noida, Construction Estimator India is your trusted partner for accuracy, transparency, and efficiency.
